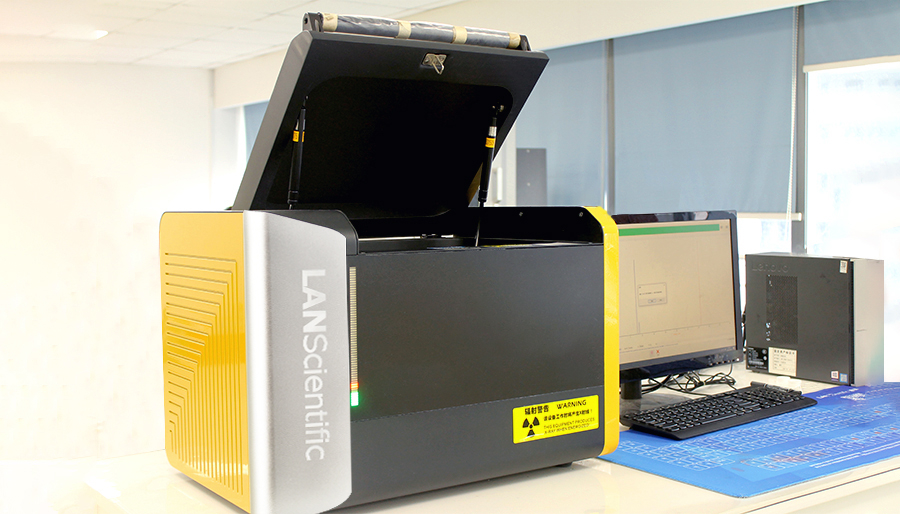

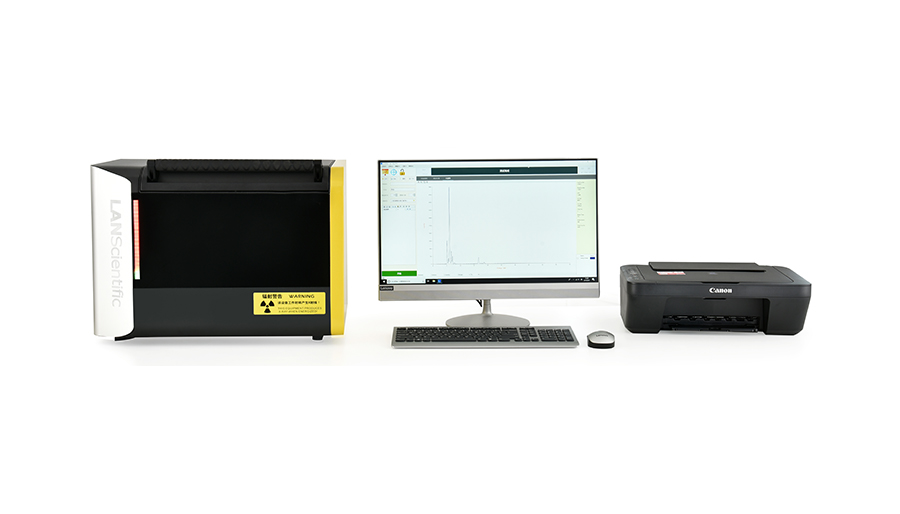

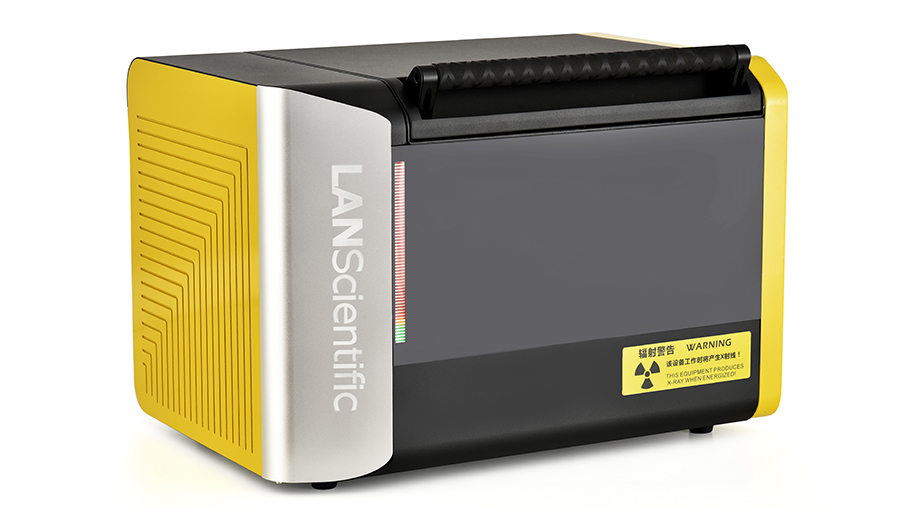

The ScopeX COAT coating analyzer is suitable for multilayer coating thickness measurement and material analysis, providing quantitative and qualitative analysis of the elemental composition of samples, as well as thickness measurement of coatings and coating systems. It is widely used in automobile manufacturing, aerospace, shipbuilding, hardware products, standard parts, electronic components, electrical parts, machinery parts, sanitary decoration products, jewelry and other fields.
|
|
|
|
|
Precision electronics, 5G industry |
| Test object | Solid, liquid, powder |
| Range of element | Na—U |
| Sample room size | 330mm × 290mm ×78mm（L×W×H） |
| Sample weight range | 0-2.5KG |

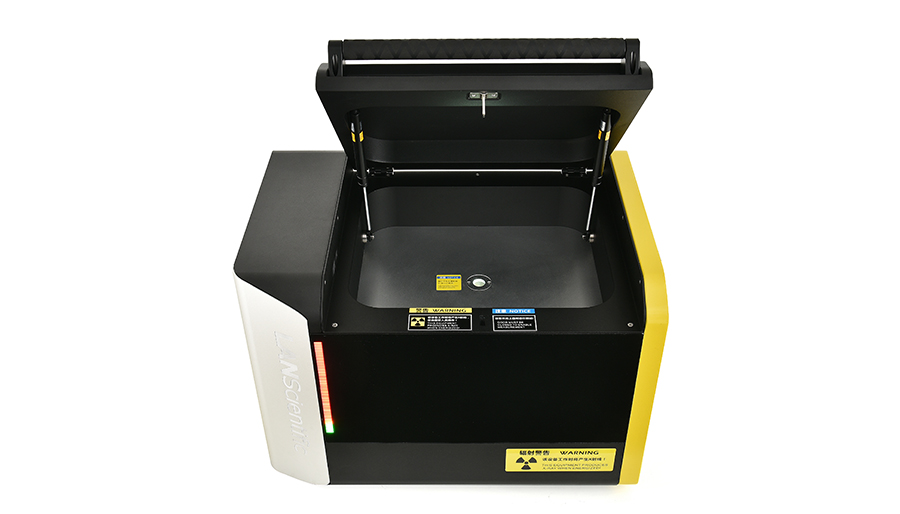

| Cover open | Automatic |
| Mainframe size | 570mm× 400mm ×400mm（L×W×H） |
| Mainframe weight | 64KG |
| X-ray tube | High power side window X-ray tube |
| Voltage | Up to 50kV |
| Current | Maximum 1mA |
| Cooling method | Air cooling |
| Detector | SDD 、Si-pin |
| Test environment | Air mode、Helium mode（optional）、Vacuum mode（optional） |
| Sampling method | Hand sampling、Autosampler（optional） |
| Sample observation | 5 megapixel HD industrial camera |
| PC(CPU) | CPU is I3-7100 with the same main frequency or above |
| RAM | DDR4 4 GB memory or above |
| ROM | 1TB HDD or 256GB SSD or above |
| OS | Windows 10 |
| Temperature conditions | 10°C~35°C |
| Relative humidity | 40%-70% （No condensation） |
| Power supply | 220VAC |
| Rated power | 100W |
| Number of analysis layers | 5 layers (4 layers + substrate), it can analyze 10 elements for each layer, composition analysis is up to 25 elements |
| LOD of thickness | 0.005μm |
| Minimum test diameter |
0.55mm |
| collimator | 0.5mm |
